Dell Inspirion 1750s Screen Replacement.

dell inspiron 1750s replacement

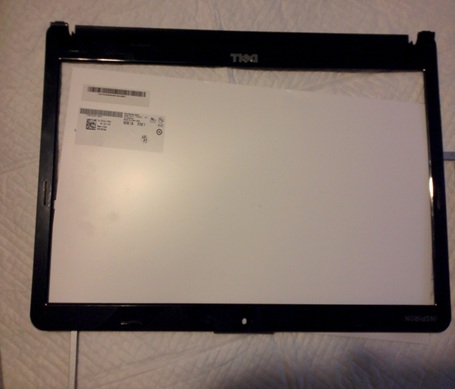

The first thing to note is there are no screws holding the screen bezel on see image below.

dell inspiron 1750s lcd replacement

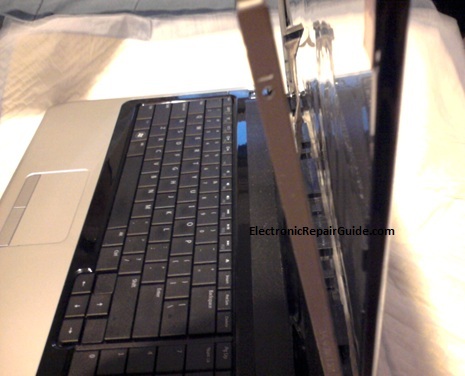

You will have to use something thin a small to wedge between the back cover and the front bezel. I used my finger nail. Just find a spot and slowly separate the two pieces . The only thing holding the front bezel to the cover is the plastic snaps see image below.

dell inspiron 1750s repair

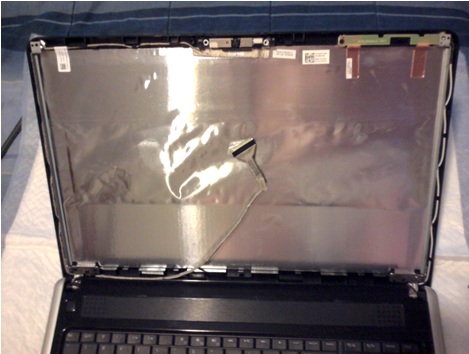

Once you have the front bezel off and out of the way you will need to locate 4 small channel screws and remove them to get the screen out see image below.

dell inspiron 1750s replacement part

As you can see from the image I did not take hinges and all off. There is no need for that you can easly get to the channel screws to remove the screen.

Once you get the screws out you will have 1 cable to unplug from the screen itself. You will have to remove some tape from the actual plug to get the thing unplugged see image below.

dell inspiron 1750s lcd screen

At this point if you were just going to replace the screen you could do so and reassemble and test your work.

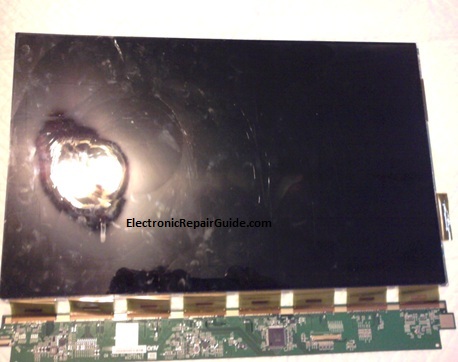

Since this is an LCD screen lets take a look at what it would take to replace the LCD light strip if one needed to.

The next step is to remove the flat cable from its track (BE CAREFULL ).

lcd backlight

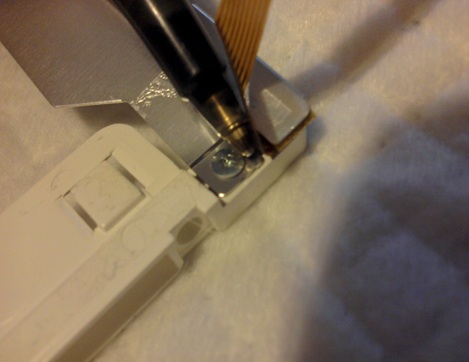

Next you will need to locate the 2 small Phillips screws that hold the LCD light strip on the screen track there are one at each end. See image below.

dell inspiron 1750s replacement backlight

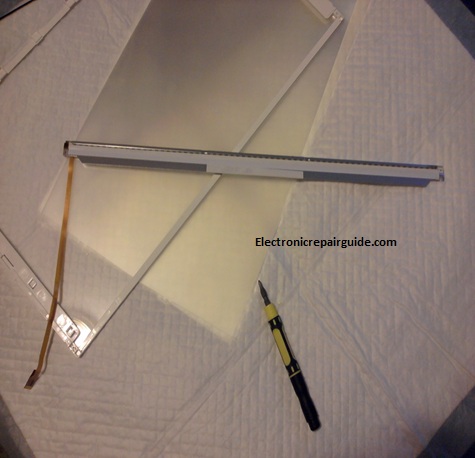

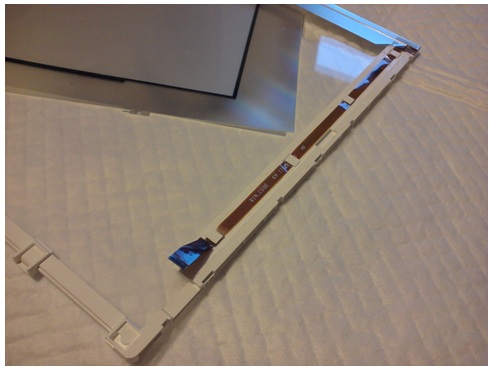

Once you remove the screws and careful to watch to flat cable there is a small piece of tape in the middle you will need to carefully remove. After that you should have the LCD light stripe completely off see image below.

dell inspiron 1750s repairing

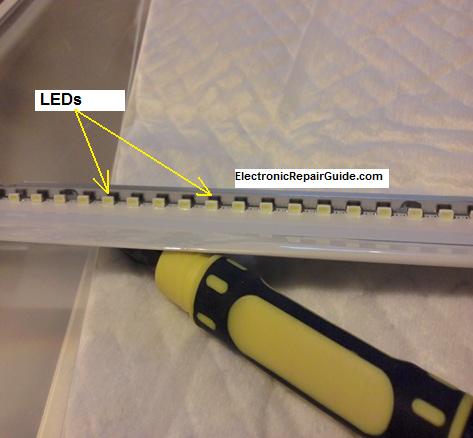

Here is a look at the LED lights inside up close.

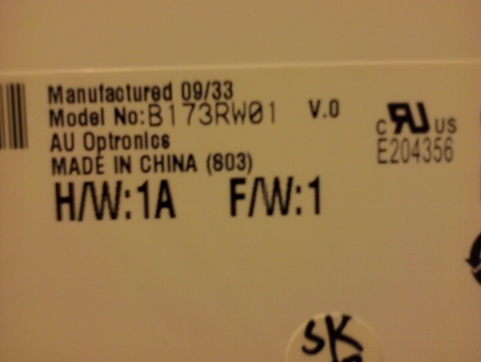

Here is screen info.

dell inspiron 1750s screen info

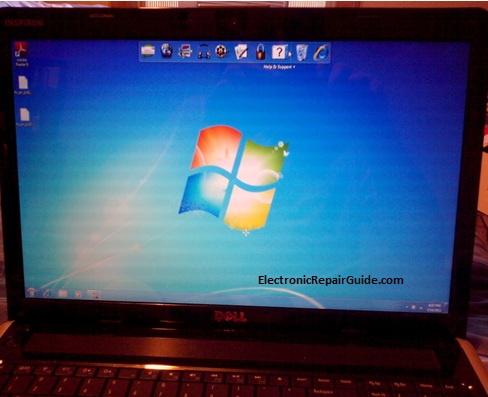

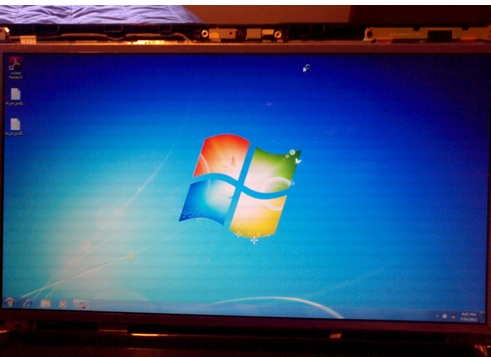

Some images of the laptop back together and working.

dell inspiron 1750s laptop

dell inspiron 1750s replace lcd screen

I think for the price of a new screen on ebay ($80.00 this price includes shipping too) I would just replace the whole screen even if you could find just the LED light strip it seems to be a lot of work to replace it.

I hope this helps to understand some of the new LCD light screens.

At this point you can reassemble the laptop and test your work.

This article was contributed and written by Grant Fullen and you can visit his website at http://www.grantslaptoprepair.info
